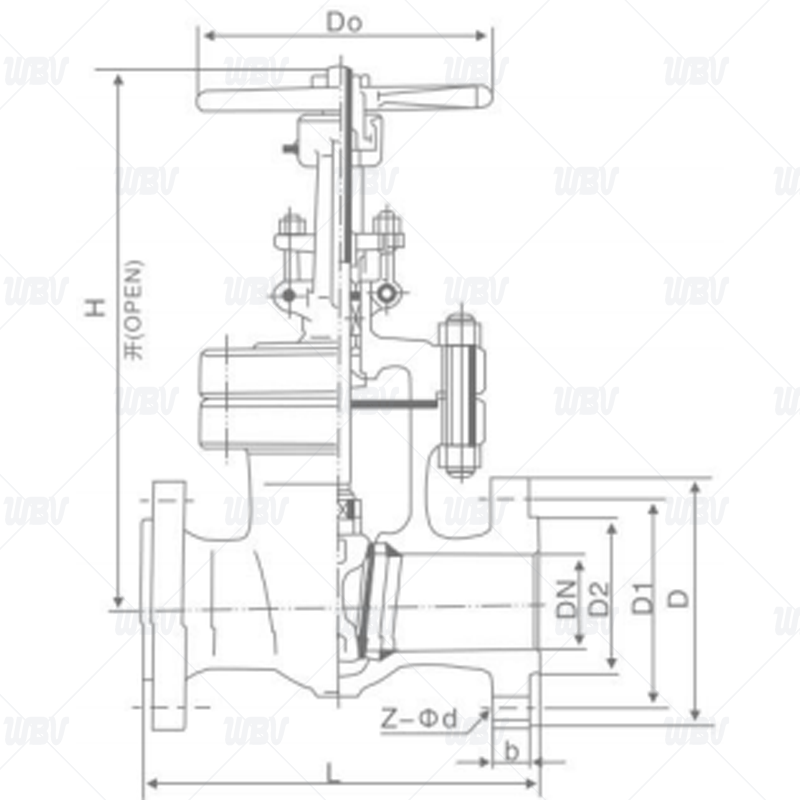

| NPS | DN | L | D | D1 | D2 | b | z-Фd | H | D0 |
| 1/2“ | 15 | 140 | 95 | 66.5 | 35 | 15 | 4-Ф15 | 190 | 120 |
| 3/4” | 20 | 152 | 117 | 82.5 | 43 | 16 | 4-Ф19 | 200 | 120 |
| 1“ | 25 | 165 | 124 | 89 | 51 | 18 | 4-Ф19 | 225 | 140 |
| 1 1/4“ | 32 | 178 | 133 | 98.5 | 64 | 19 | 4-Ф19 | 255 | 160 |
| 1 1/2” | 40 | 190 | 156 | 114.3 | 73 | 21 | 4-Ф22 | 320 | 180 |
| 2“ | 50 | 216 | 165 | 127 | 92 | 23 | 8-Ф19 | 360 | 220 |
| 2 1/2” | 65 | 241 | 190.5 | 149.4 | 104.7 | 26 | 8-Ф22 | 400 | 240 |
| 3“ | 80 | 283 | 210 | 168.2 | 127 | 29 | 8-Ф22 | 455 | 280 |
| 4” | 100 | 305 | 254 | 200.2 | 157 | 32 | 8-Ф22 | 500 | 300 |
| 5“ | 125 | 381 | 279 | 235 | 185.7 | 35 | 8-Ф22 | 555 | 320 |
| 6” | 150 | 403 | 318 | 270 | 216 | 37 | 12-Ф22 | 650 | 350 |
| 8“ | 200 | 419 | 381 | 330 | 270 | 42 | 12-Ф25 | 900 | 450 |
| 10” | 250 | 459 | 445 | 387.5 | 324 | 48 | 16-Ф29 | 970 | 500 |
| 12“ | 300 | 502 | 521 | 451 | 381 | 51 | 16-Ф32 | 1110 | 550 |
| 14” | 350 | 762 | 584 | 514.5 | 413 | 54 | 20-Ф32 | 1220 | 600 |
| 16” | 400 | 838 | 648 | 571.5 | 470 | 58 | 20-Ф35 | 1430 | 650 |
| 18“ | 450 | 914 | 711 | 628.7 | 533.4 | 61 | 24-Ф35 | 1510 | 700 |
| 20” | 500 | 991 | 775 | 685.8 | 584 | 64 | 24-Ф35 | 1680 | 750 |
| 24“ | 600 | 1143 | 914.4 | 812.8 | 692 | 70 | 24-Ф41 | 1820 | 800 |
| 26” | 650 | 1245 | 972 | 876 | 749.5 | 80 | 24-Ф45 | 1920 | 850 |
| 28“ | 700 | 1345 | 1035 | 939.8 | 800 | 86 | 28-Ф45 | 2100 | 900 |
?? ??
1. Design and manufacture in accordance with the provisions of ANSI 16.34 API600
2. The ?? ?? shall comply with the provisions of ANSI B16.10
3. ??? ?? the provisions of ANSI B16.5
4. The pressure and temperature ratings shall be in accordance with the provisions of ANSI B16.34
5. ??? ?? API598 regulations
?? ?? ???
| ?? | ?? | ||||||||
| ?? | A216 WCB | A352 LCB | A217 WC6 | A217 WC9 | A217 CS | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| ?? ?? | |||||||||
| ??? | |||||||||
| ?? ?? | A182 F6 | A182 F304 | A182 F316 | A182 F304L | A182 F316L | ||||
| ?? ?? | ZcuAl10Fe3 Bronze | ||||||||
| ??? | KTH350-10 | ||||||||
| ?? | A193-B7 A320-L7 A193-B8 | ||||||||
| ?? | A194-2H A194-7 A194-8 | ||||||||
