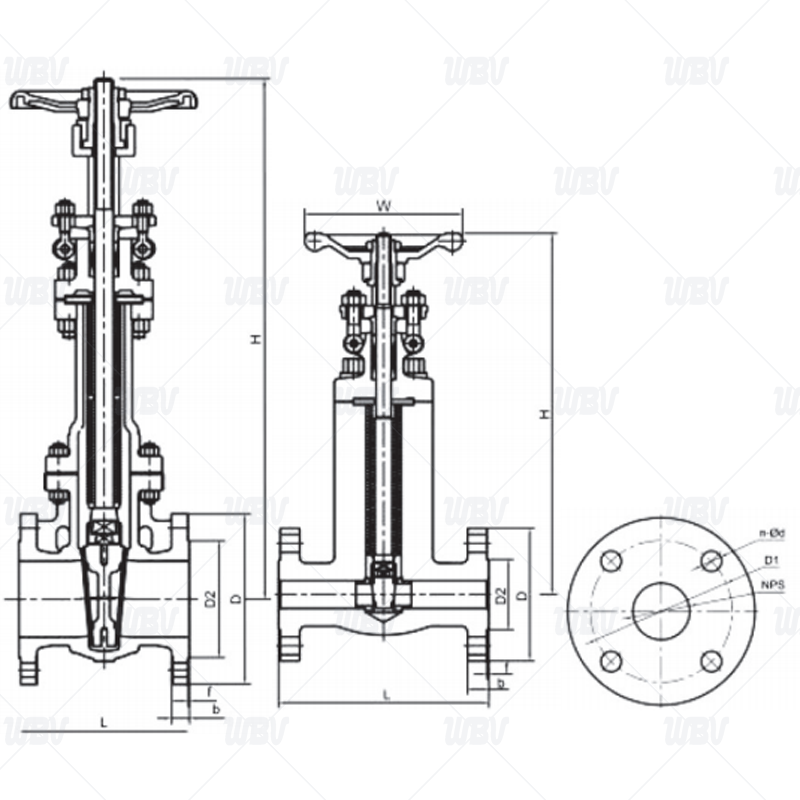

| ?? ??PN | ?? | ??NPS | ? ??(L) | ??(D) | ??(D1) | ??(D2) | ??? ??(b) | ?? ???(f) | n-Фd | ???(w) | ???(H) |
| 150LB | A105 | 1/2" | 108 | 90 | 60.3 | 35 | 10 | 2 | 4-Ф16 | Ф95 | 210 |
| 3/4" | 117 | 100 | 69.9 | 43 | 10.9 | 2 | 4-Ф16 | Ф95 | 215 | ||
| 1" | 127 | 110 | 79.4 | 51 | 11.6 | 2 | 4-Ф16 | Ф117 | 245 | ||
| 1 1/4" | 140 | 115 | 88.9 | 63.5 | 13.2 | 2 | 4-Ф16 | Ф145 | 280 | ||
| 1 1/2" | 165 | 125 | 98.4 | 73 | 14.7 | 2 | 4-Ф16 | Ф145 | 295 | ||
| A105 WCB | 2" | 178 | 150 | 120.7 | 92 | 16.3 | 2 | 4-Ф19 | Ф170/220 | 363/415 | |
| WCB | 2 1/2" | 190 | 180 | 139.7 | 105 | 17.9 | 2 | 4-Ф19 | 240 | 560 | |
| 3" | 203 | 190 | 152.4 | 127 | 19.5 | 2 | 4-Ф19 | 280 | 620 | ||
| 4" | 229 | 230 | 190.5 | 157 | 24.3 | 2 | 8-Ф19 | 300 | 670 | ||
| 5" | 254 | 255 | 215.9 | 186 | 24.3 | 2 | 8-Ф22 | 320 | 810 | ||
| 6" | 267 | 280 | 241.3 | 216 | 25.9 | 2 | 8-Ф22 | 350 | 900 | ||
| 8" | 291 | 345 | 298.5 | 270 | 29 | 2 | 8-Ф22 | 400 | 1100 | ||
| 10" | 330 | 405 | 362 | 324 | 30.6 | 2 | 12-Ф26 | 450 | 1480 | ||
| 12" | 356 | 485 | 431.8 | 381 | 32.2 | 2 | 12-Ф26 | 500 | 1890 | ||
| 14" | 381 | 535 | 476.3 | 413 | 35.4 | 2 | 12-Ф29 | 550 | 2250 | ||
| 16" | 406 | 595 | 539.8 | 470 | 37 | 2 | 16-Ф29 | 600 | 2550 | ||
| 18" | 432 | 635 | 577.9 | 533 | 40.1 | 2 | 16-Ф32 | 650 | 2760 | ||
| 20" | 457 | 700 | 635 | 584 | 43.3 | 2 | 20-Ф32 | 700 | 3150 | ||
| ?? ??PN | ?? | ??NPS | ? ??(L) | ??(D) | ??(D1) | ??(D2) | ??? ??(b) | ?? ???(f) | n-Фd | ???(w) | ???(H) |
| 300LB | A105 | 1/2" | 140 | 95 | 66.7 | 35 | 14.4 | 2 | 4-Ф16 | Ф95 | 210 |
| 3/4" | 152 | 115 | 82.6 | 43 | 16.3 | 2 | 4-Ф19 | Ф95 | 215 | ||
| 1" | 165 | 125 | 88.9 | 51 | 17.9 | 2 | 4-Ф19 | Ф117 | 245 | ||
| 1 1/4" | 178 | 135 | 98.4 | 63.5 | 19.5 | 2 | 4-Ф19 | Ф145 | 280 | ||
| 1 1/2" | 190 | 155 | 114.3 | 73 | 21.1 | 2 | 4-Ф22 | Ф145 | 295 | ||
| A105 WCB | 2" | 216 | 165 | 127 | 92 | 22.7 | 2 | 8-Ф19 | Ф170/220 | 363/415 | |
| WCB | 2 1/2" | 241 | 190 | 149.2 | 105 | 25.9 | 2 | 8-Ф22 | 250 | 560 | |
| 3" | 283 | 210 | 168.3 | 127 | 29 | 2 | 8-Ф22 | 300 | 620 | ||
| 4" | 305 | 255 | 200 | 157 | 32.2 | 2 | 8-Ф22 | 320 | 670 | ||
| 5" | 381 | 280 | 235 | 186 | 35.4 | 2 | 8-Ф22 | 350 | 810 | ||
| 6" | 403 | 320 | 269.9 | 216 | 37 | 2 | 12-Ф22 | 400 | 900 | ||
| 8" | 419 | 380 | 330.2 | 270 | 41.7 | 2 | 12-Ф26 | 450 | 1100 | ||
| 10" | 457 | 445 | 387.4 | 324 | 48.1 | 2 | 16-Ф29 | 500 | 1480 | ||
| 12" | 502 | 520 | 450.8 | 381 | 51.3 | 2 | 16-Ф32 | 550 | 1890 | ||
| 14" | 762 | 585 | 514.4 | 413 | 54.4 | 2 | 20-Ф32 | 600 | 2250 | ||
| 16" | 838 | 650 | 571.5 | 470 | 57.6 | 2 | 20-Ф35 | - | - | ||
| 18" | 914 | 710 | 628.6 | 533 | 60.8 | 2 | 24-Ф35 | - | - | ||
| 20" | 991 | 775 | 685.8 | 584 | 64 | 2 | 24-Ф35 | - | - |
?? ??
1. ?? ?? ANSI 16.34 API600
2. ?? ?? ?? ANSI B16.10
3. ??? ?? ?? ANSI B16.5
4. ?? ?? ?? ?? ANSI B16.34
5. ??? ?? API598
?? ?? ???
| ???? | ?? | ?? | ???? | ?? | ?? |
| 1 | ?? | WCB/WC6/CF8/CF8M | 13 | ?? | ???? ??+??????/PTFE |
| 2 | ??? | WCB+1Cr13/Stellite | 14 | ?? ?? | WCB/CF8/CF8M |
| 3 | ?? ??? | 1Cr13/Stellite | 15 | ??? | ???? ??/PTFE |
| 4 | ?? ?? | 2Cr13/F304/F316 | 16 | ??? | 1035/SS304 |
| 5 | ??? | SS304/SS316L | 17 | ??? ?? | WCB/CF8 |
| 6 | ???? | ASTM A193-B7/A193-B8 | 18 | ?? ?? | ASTM A193-B7/A193-B8 |
| 7 | ?? ?? | ASTM A194-2H/A194-8 | 19 | ?? ?? | ASTM A194-2H/A194-8 |
| 8 | ?? | ???? ??+??????/PTFE | 20 | ?? | ????/D2/BL-2 |
| 9 | ?? ?? | ASTM A194-2H/A194-8 | 21 | ??? | ?? ?? |
| 10 | ?? ??? | WCB/CF8/CF8M | 22 | ??? ?? | 1035/SS304 |
| 11 | ???? | ASTM A193-B7/A193-B8 | 23 | ??? | ???/KTH330 |
| 12 | ?? ?? | ASTM A194-2H/A194-8 | 24 | ?? ?? | A105 |
